Installation and Setup Instructions forSmart Control Module Exchange

Step 1: Remove Old Smart Control Module

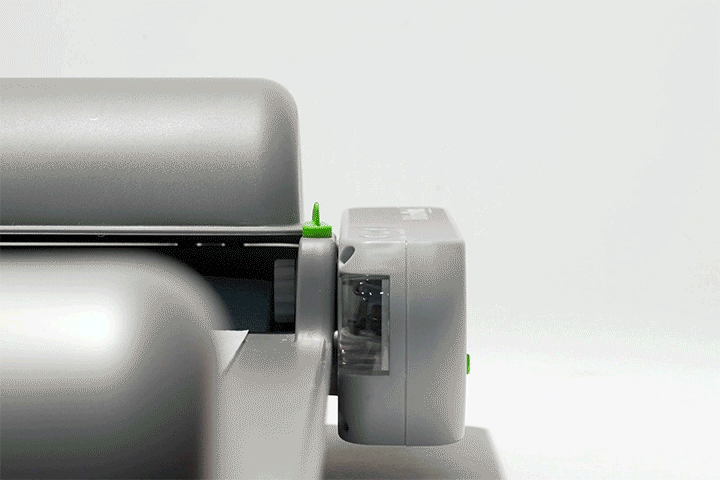

1. Locate Smart Control Module on the right side of your BrilliantPad Smart.
2. Rotate the green latch counterclockwise to the 12 o'clock position.
3. Remove Smart Control Module and set it aside.

Step 2: Install New Smart Control Module Exchange

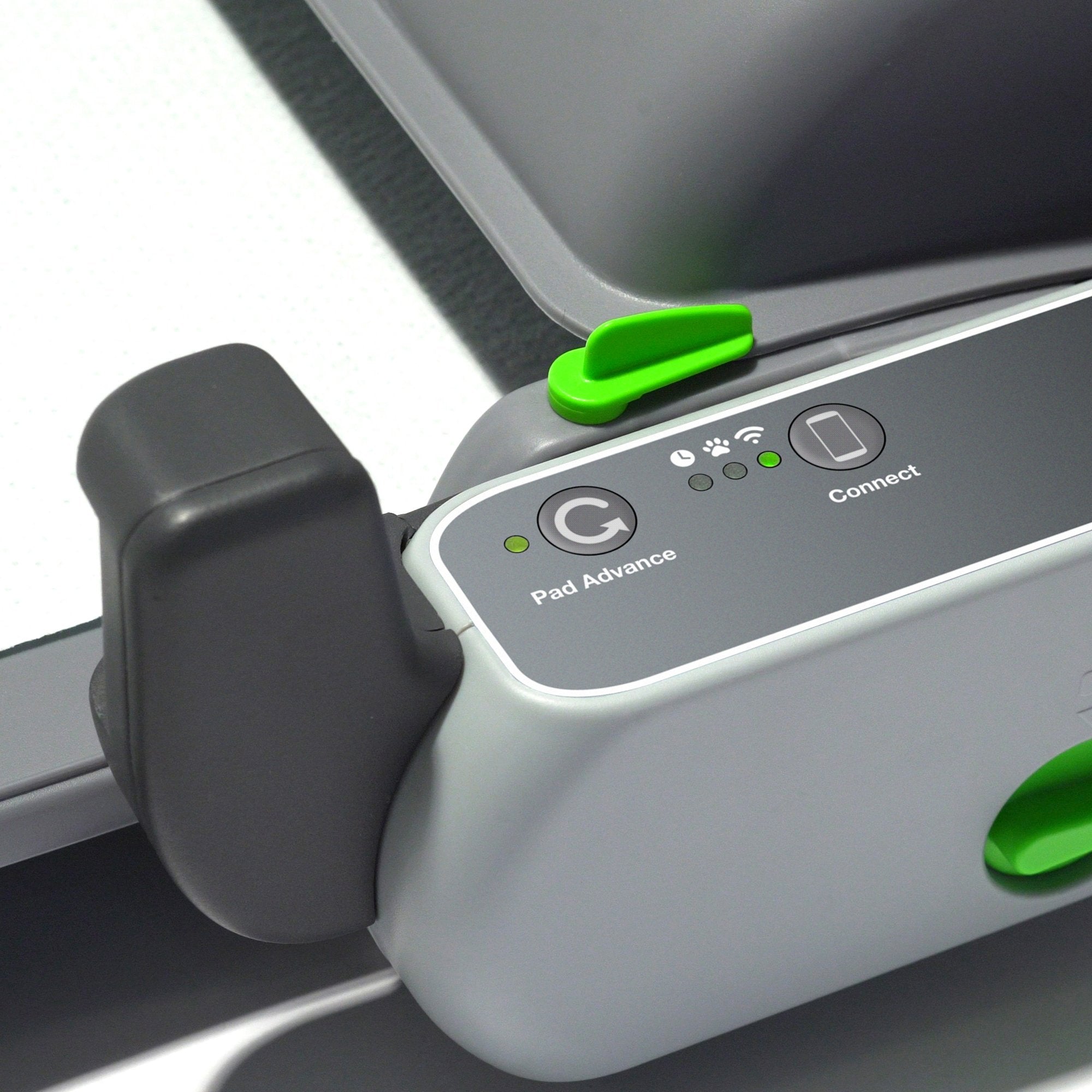

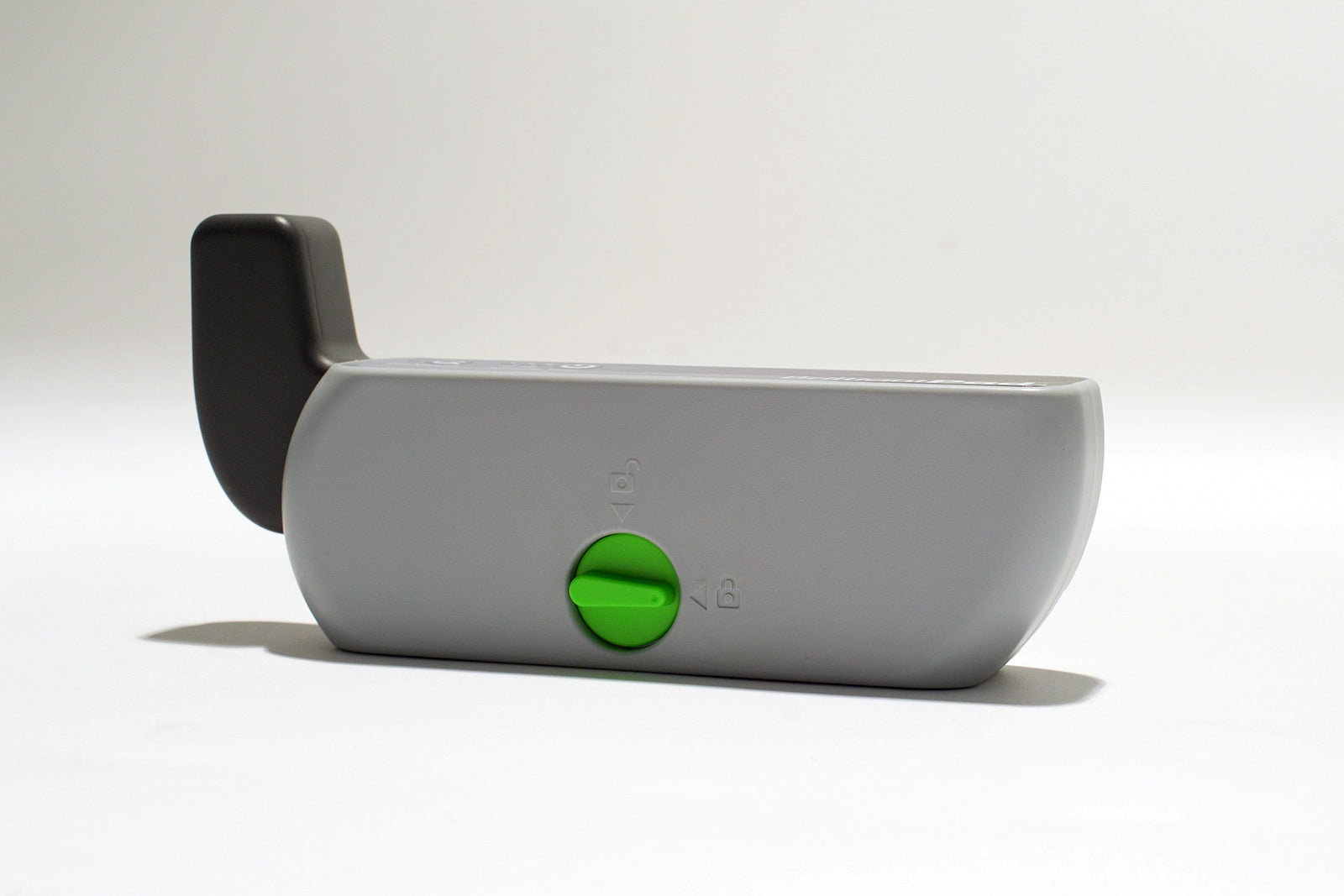

1. Ensure green knob is pointing up towards 12 o’clock.
2. Push newSmart Control Modulegear through hole in base.
3. Press all the way through until two small pegs on the drive module fit into the two small slots in the base.
4. Rotate green latch clockwise to the 3 o'clock position to lock in place.

Step 3: Pair the New Smart Control Module to the BrilliantPad App

1. Open BrilliantPad app and sign in.
2. Tap the (+) plus in the app to connect your BrilliantPad machine to your app and account.
3. The BrilliantPad app will guide you through the rest of the process.

Return the old module using the shipping carton and pre-paid shipping label within 30 days to ensure there is no charge to your credit card.

If you have trouble with the pairing process:

1. Try again
2. Unplug the Smart module, wait 15 seconds and plug back in.
3. Hard close and reopen the app. Or uninstall and reinstall the app.
4. Try pairing again
5. If you continue to experience issues, please contact BrilliantPad customer service atsupport@brilliantpad.com
